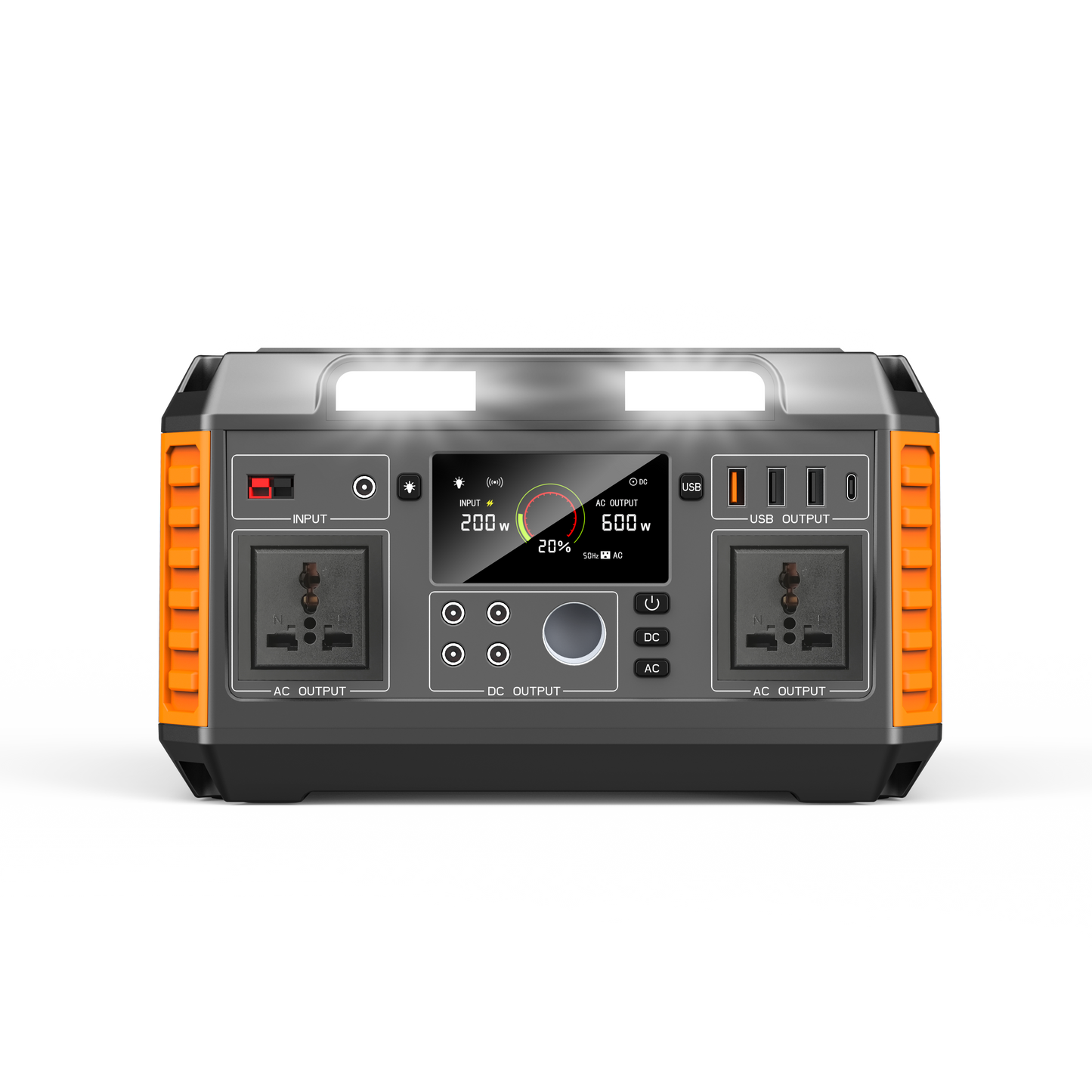

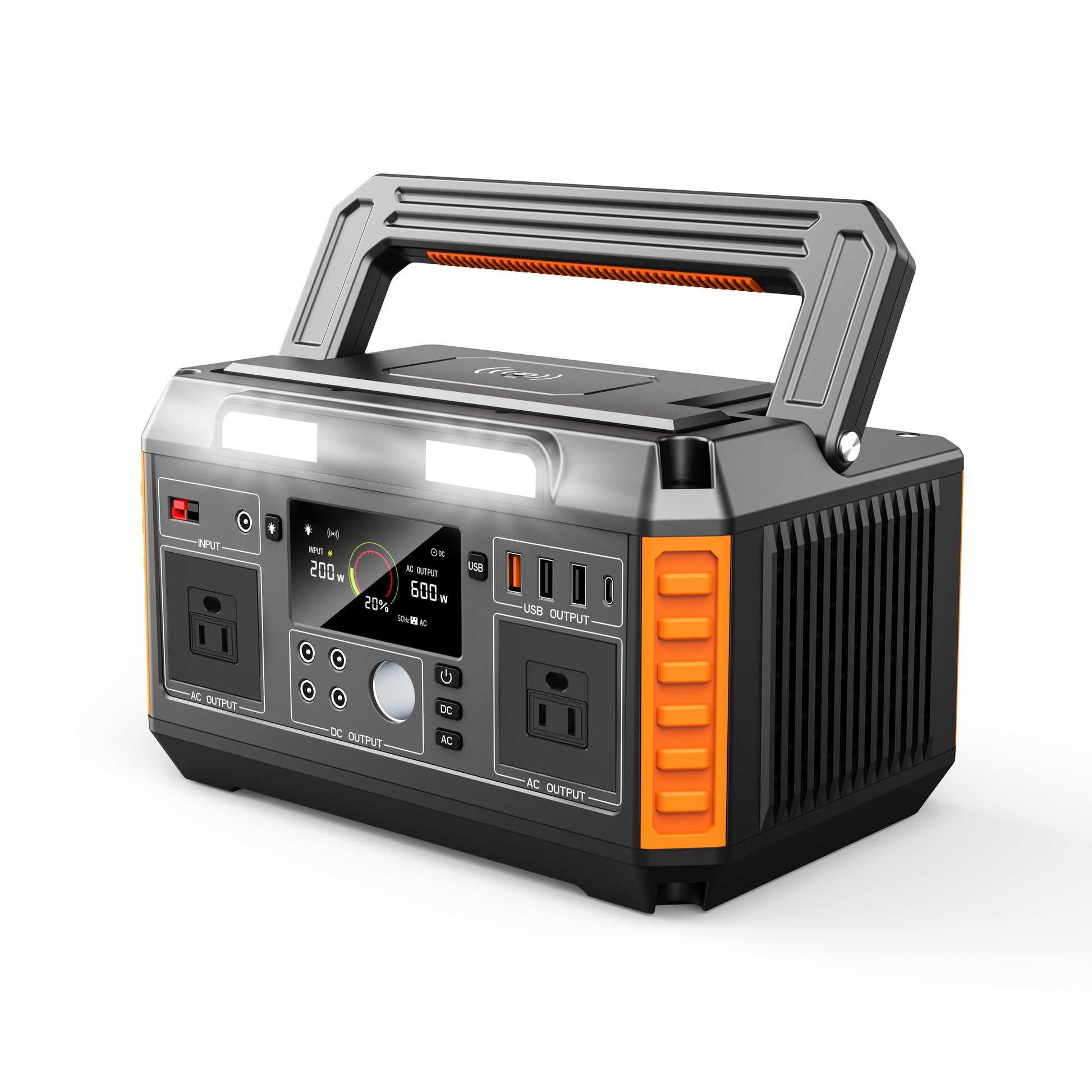

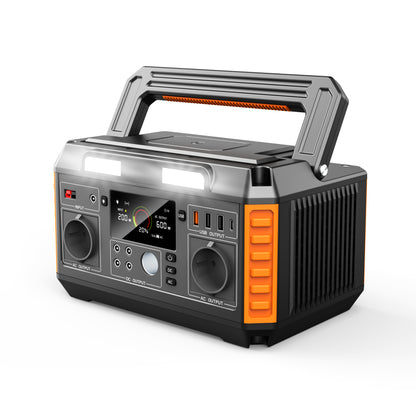

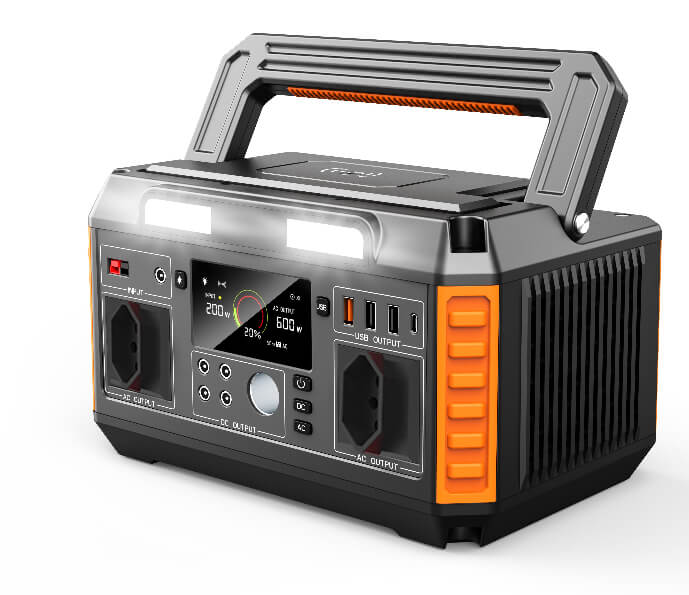

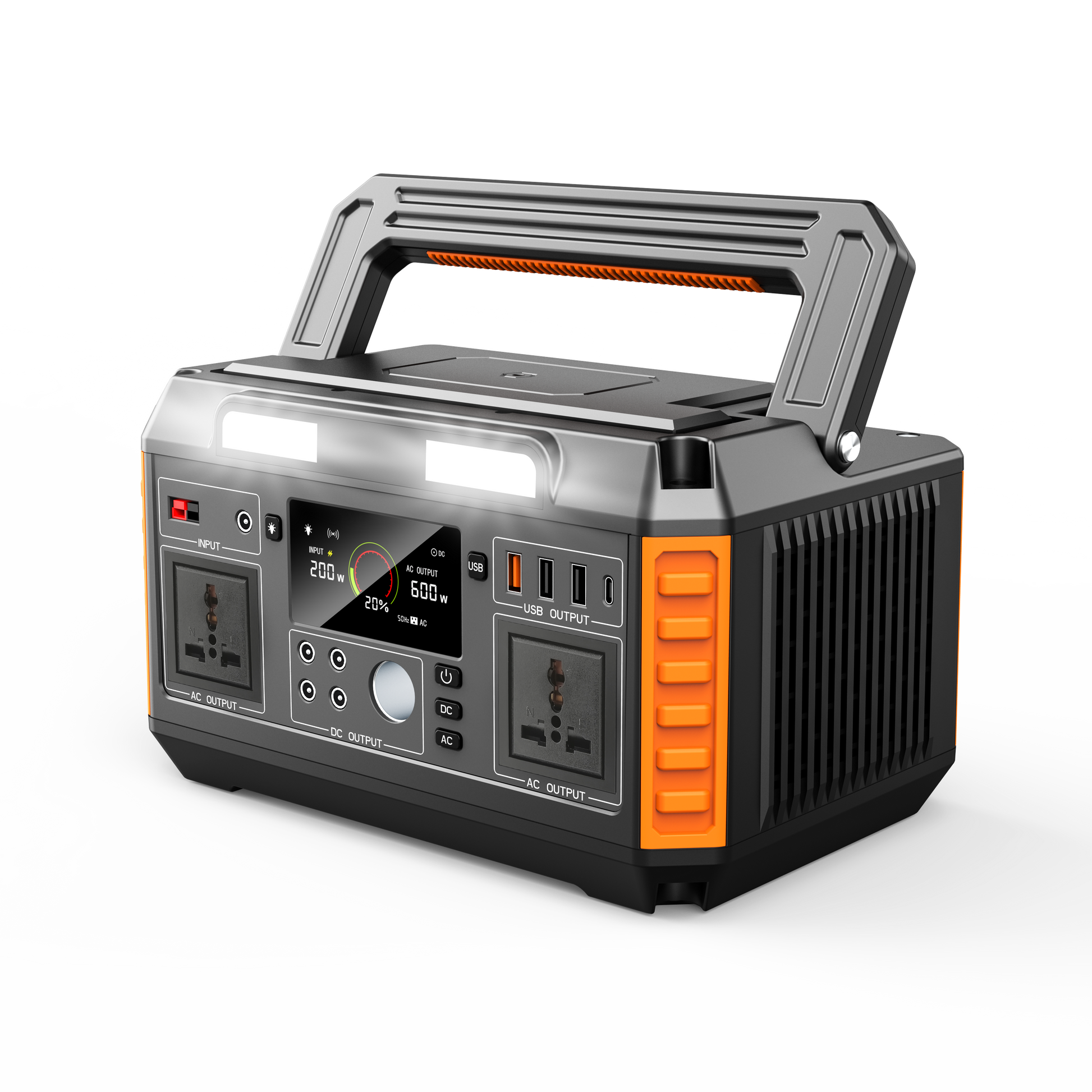

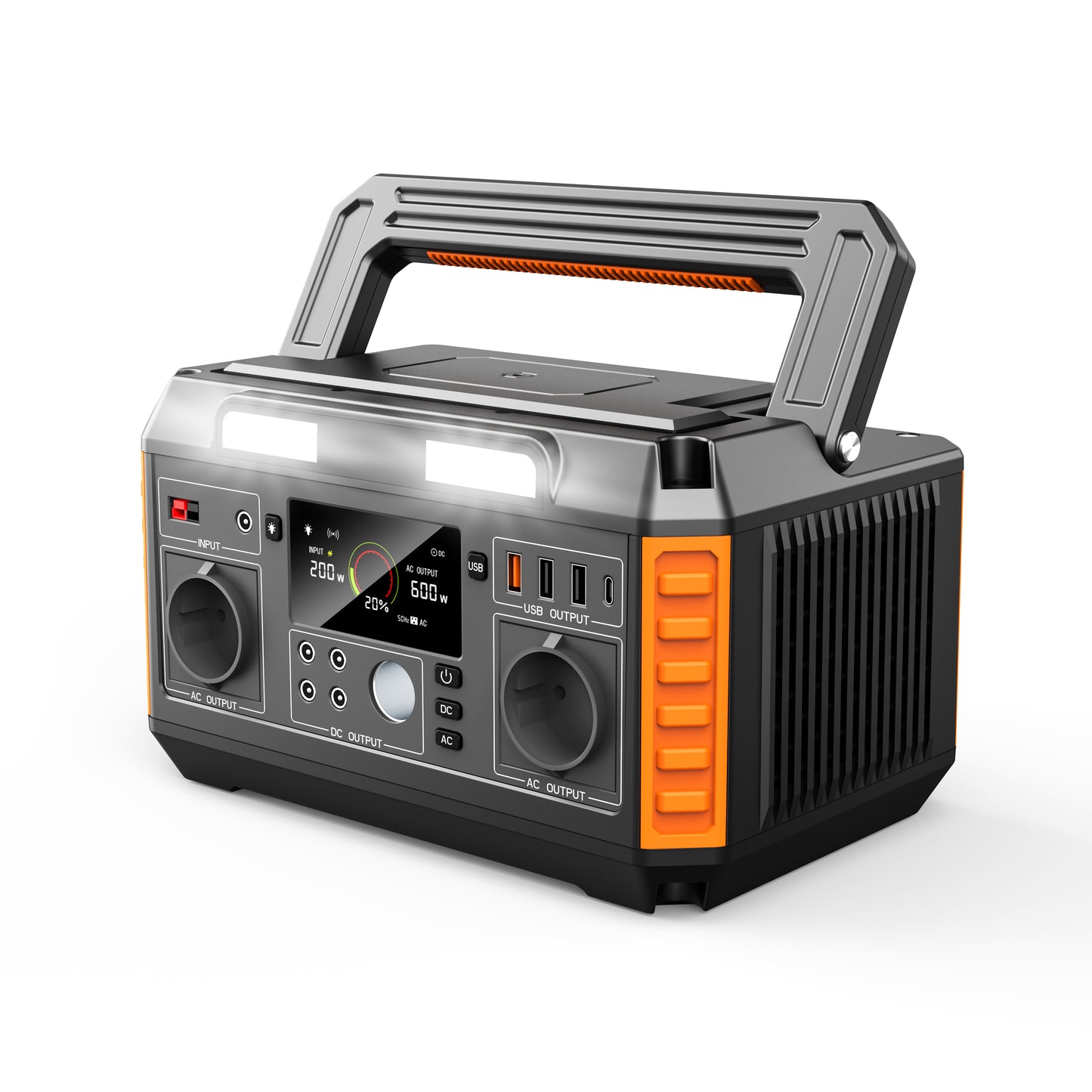

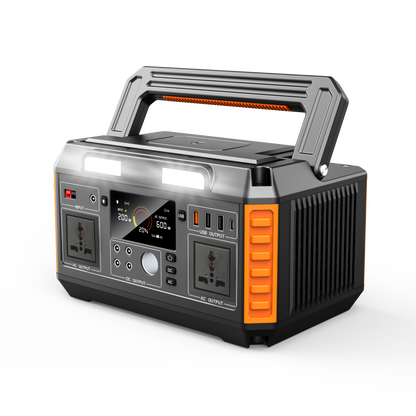

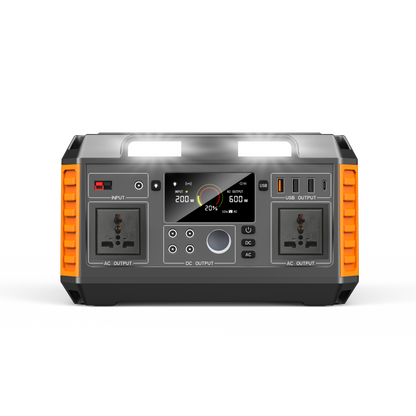

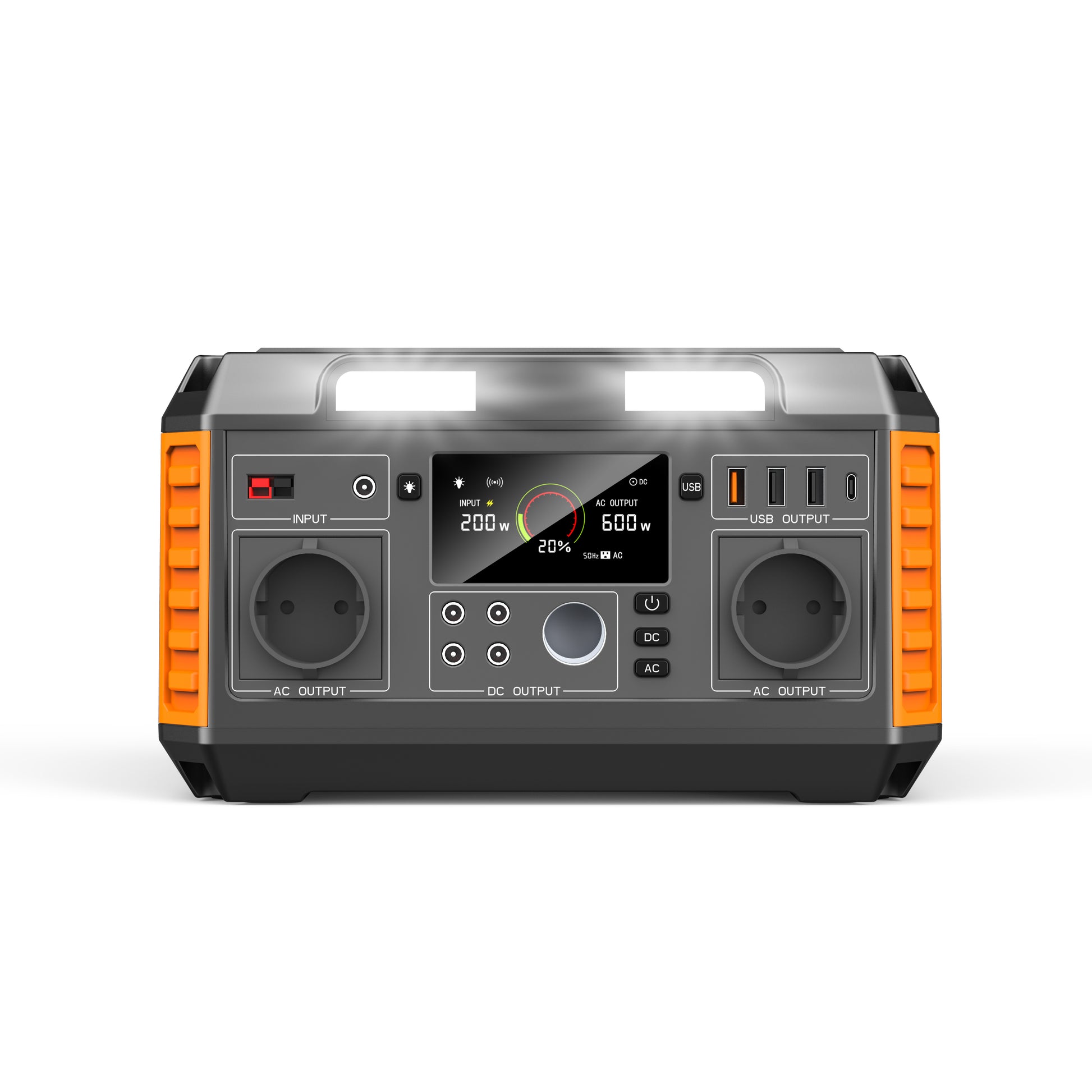

520Wh high-quality lithium power station delivering 600W continuous pure sine wave AC. Rich outputs (USB/Type-C/DC/12V car socket), 15W wireless charging, and triple recharging (adapter/solar/car) make it ideal for power outages, camping, outdoor operations, emergency rescue and home backup.
Features:
- 520Wh (140,400mAh @3.7V) capacity; pack voltage 22.2V (6S9P 18650 cells), >1000 cycles (~80% retention).
- 600W continuous dual AC pure sine wave output (up to ~650W constant output range noted).
- Fast I/O: 1× USB QC3.0 (5–12V/2A), 2× USB 5V/3.1A, 1× USB-C PD 60W (5–20V/3A), 4× DC 13.5V/6A (12A max total), 1× 12V cigarette lighter (13.5V/10A, 150W max).
- Triple input charging: DC5521 12–26V/8A (max 120W), Anderson 12–26V/8A (max 160W), USB-C PD 60W. Full charge ~7–12h depending on input/combo.
- 15W wireless charging pad + 4W LED lighting.
- Comprehensive protection: Short circuit / Over-current / Over-voltage / Under-voltage / Overload / Over-temperature.
- Certified safe: PSE, FCC, CE, RoHS, MSDS, UN38.3 with air & marine transportation reports.
- Portable build: about 5.9 kg, compact 288 × 198 × 166 mm.
Charging Time (Reference)
- Single DC5521 port: ~4–5 h
- Single Anderson port: ~4 h
- Single USB-C PD60W: ~11–12 h
- Anderson + USB-C simultaneous: ~3–4 h
- DC5521 + USB-C simultaneous: ~4–5 h
Specifications
| General Parameters | |
|---|---|
| Built-in battery | High quality lithium-ion battery |
| Battery capacity | 520Wh / 140,400mAh / 3.7V |
| Operating temperature | −10℃ ~ 40℃ |
| AC output | 2 × AC pure sine wave |
| AC continuous output power | 600W (constant output range up to 650W; 85–120V / 160–230V) |
| LED lighting | 4W |
| Wireless charging | 15W |
| DC / USB outputs | USB: 1 × USB (5–12V/2A, QC3.0), 2 × USB (5V/3.1A) Type-C: 1 × USB-C (5–20V/3A, PD 60W) DC5521: 4 × DC 13.5V/6A (12A max total) 12V Car Socket: 1 × Cigarette lighter (13.5V/10A, 150W max) |
| Inputs & Recharging | |
| DC5521 | 12–26V / 8A (max 120W) |
| Anderson | 12–26V / 8A (max 160W) |
| USB-C | 5–20V / 3A (PD 60W max) |
| Full charge time | DC: ~4–5h; Anderson: ~4h; USB-C: ~11–12h; Anderson+Type-C: ~3–4h; DC+Type-C: ~4–5h |
| Battery Pack | |
| Cell type | 18650 |
| Single cell capacity | 2600mAh |
| Configuration | 6 series 9 parallel (6S9P) |
| Cell voltage | 3.7V |
| Battery voltage | 22.2V |
| Cycle life | >1000 times (≈80% capacity maintained) |
| Protection & Certification | |
| Protections | Short circuit, Over-current, Over-voltage, Under-voltage, Overload, Over-temperature |
| Certifications | PSE, FCC, CE, RoHS, MSDS, UN38.3; Air & Marine transportation reports |
| Mechanical | |
| Dimensions (L×W×H) | 288 × 198 × 166 mm |
| Net weight | About 5.9 kg |
| Packaging | |
| Carrying case dimension | 39.6 × 27.6 × 25.2 cm; single case weight 8.0 kg |
520Wh 600W Portable Power Station
520Wh 600W Portable Power Station is a portable battery power solution for outdoor use, emergency backup and small electronics. It is easier to use than a standalone inverter because the battery and AC output are built into one unit.
Main Specifications
Capacity: 520Wh; AC output: 600W class. Check ports, continuous output and surge limit before use.
Device Compatibility Guide
| Device Type | Usually Suitable? | What to Check First |
|---|---|---|
| Phone / Laptop Charging | Usually yes | Check port output and total connected load. |
| LED Lights / Camera Gear | Usually yes | Check device wattage and runtime needs. |
| Small Fan / TV | Usually yes | Check rated watts. |
| Mini Fridge | Depends | Check compressor startup surge and runtime needs. |
| Coffee Maker / Microwave | Depends | Heating loads may require more power and drain batteries quickly. |
| Heater / Air Conditioner | Caution | High continuous loads are usually not ideal for small systems. |
Best Use
Camping, RV electronics, lights, fans, laptops and selected small appliances.
Use Limits
For portable power stations, runtime depends on battery capacity in Wh, AC output limit, device wattage and conversion loss. Do not connect devices that exceed the continuous AC output.
Product FAQs
What is 520Wh 600W Portable Power Station best for?
Camping, RV electronics, lights, fans, laptops and selected small appliances.
What should I check before use?
Check continuous output, startup surge, battery capacity or runtime, voltage compatibility, cable size, fuse protection and ventilation.
Can it run a refrigerator?
It depends on the refrigerator’s running watts and compressor startup surge. Always check the appliance label first.
Can it run a microwave or coffee maker?
Only if the rated watts and startup demand stay within the product’s continuous and surge limits. Heating devices can drain batteries quickly.
What is the main safety reminder?
For portable power stations, runtime depends on battery capacity in Wh, AC output limit, device wattage and conversion loss. Do not connect devices that exceed the continuous AC output.
